Flat Wire Belt

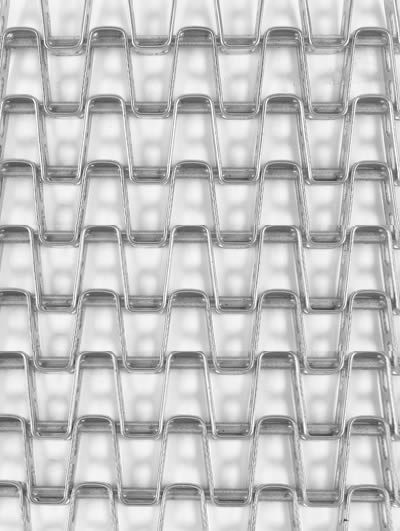

Flat wire belt that is available in clinched or welded edge. These hinged steel conveyor belts are an assembly of automatically formed precision flat wire pickets. A continuous belt is made by nesting the pickets and inserting a straight round wire connector through the accurately positioned holes. The connector functions as a hinge, affording full vertical flexibility to the belt. Flat wire conveyor belts offer a flat conveying surface and a maximum open area for free air flow or water drainage. They are easy to clean and are extremely sanitary, especially when manufactured with Ashworth-recommended clinched edges. Clinched-edge treatment of these belts results in a number of additional user benefits which are fully outlined in the product technical bulletin.

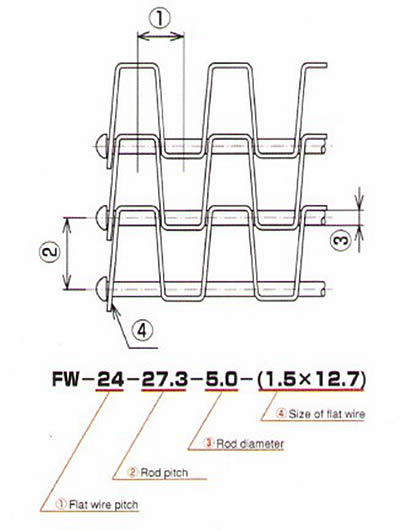

Standard specification (nominal size)
| Specification | Weight(kg/m2) |
| FW-24-27.3-5.0-(1.5x12.7) | 17.6 |
| FW-18-27.4-5.0-（1.5x12.7) | 19.7 |
| FW-12.7-25.4-5.0-（1.5x12.7) | 23.9 |
| FW-12.7-25.4-5.0-(1.5x14.1) | 26.1 |
| FW-25.4-25.4-5.0-(1.2x14.1) | 17.0 |
| FW-12.7-25.4-5.0-(1.2x14.1) | 22.0 |
| FW-14-19.05-4.0-(1.2x12.0) | 19.9 |
| FW-24-27.4-3.0-(1.2x9.5) | 9.1 |
| FW-16-27.4-3.0-(1.2x9.5) | 11.0 |
| FW-15-27-3.0-(1.2x14.1) | 16.6 |
| FW-14-13.7-3.0-(1.2x9.5) | 17.2 |
| CFW-24-27.3-5.0-(1.5x12.7) | 16.5 |
| CFW-18-27.4-5.0-(1.5x12.7) | 17.0 |
