Extruder Screen
Extruder screens are an imperative part of the melt filtration process. It is used in plastic and rubber processing machinery to ensure a clean and viable extrusion. Our wire cloth screen for extruder filtration available in various materials, weaves all with a wide spectrum of micron ratings to suit different filter use.
Specification
- Layer: single layer or multilayer.
- Material: stainless steel wire mesh, brass wire mesh Woven.
- style: plain steel wire mesh, twill mesh.

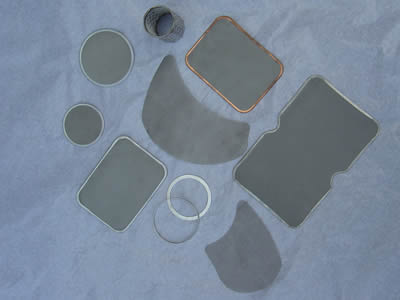

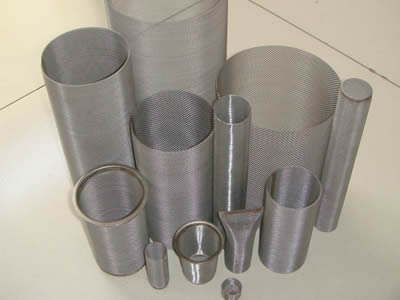

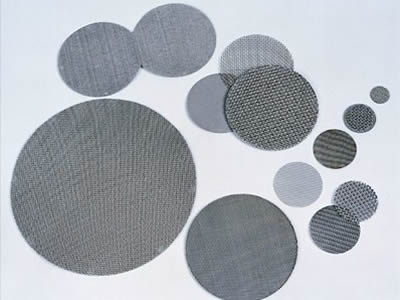

- Shape: circle, disc, round, oval, rectangular, cones, or other special shape, spot weld packs.
- With compressed edges or without borders.
| Standard Extruder Screen Size | |||
|---|---|---|---|
| Mesh | Wire Dia. mm | Aperture Size mm | Open Area |
| 10 × 10 | 0.711 | 1.829mm | 51.8 |
| 14 × 14 | 0.457 | 1.357mm | 55.9 |
| 16 × 16 | 0.457 | 1.131mm | 50.7 |
| 20 × 20 | 0.559 | 0.711mm | 31.4 |
| 20 × 20 | 0.457 | 0.813mm | 41.0 |
| 24 × 24 | 0.376 | 0.682mm | 41.4 |
| 30 × 30 | 0.376 | 0.531mm | 34.2 |
| 30 × 30 | 0.310 | 0.536mm | 40.0 |
| 40 × 40 | 0.274 | 0.361mm | 32.3 |
| 50 × 50 | 0.193 | 0.335mm | 43.6 |
| 60 × 60 | 0.193 | 0.230mm | 29.8 |
| 80 × 80 | 0.122 | 0.196mm | 37.9 |
| 100 × 100 | 0.102 | 0.152mm | 36.0 |
| 120 × 120 | 0.091 | 0.120mm | 31.8 |
| 150 × 150 | 0.071 | 0.088mm | 29.6 |
| 200 × 200 | 0.050 | 0.077mm | 36.76 |
| 250 × 250 | 0.040 | 0.062mm | 36.76 |
| 300 × 300 | 0.040 | 0.045mm | 27.83 |
| 325 × 325 | 0.035 | 0.043mm | 30.49 |
| 400 × 400 | 0.028 | 0.036mm | 31.25 |
| 500 × 500 | 0.025 | 0.026mm | 25.79 |
Benefits:
- To filter out contaminants and improve mixing and product purity, reduce your maintenance and repair costs.
- With smooth screening surface with no sharp edges, burrs or acute angles.
- Available in different size, variants and specifications.
- Highly durable with robust structure.
- Anti-abrasive & anti-corrosive in nature.
- High quality and filtration capacity.
- Precise fitting filter elements.
- Optimum cost-performance ratio.
- Constant quality control during production.
Application:
Extruder screen is essential in preventing contamination in the melted mass during the extrusion process. It is effect to keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use. Mainly used for filtration of plastics and rubber processing industry, chemical and pharmaceutical industry.
